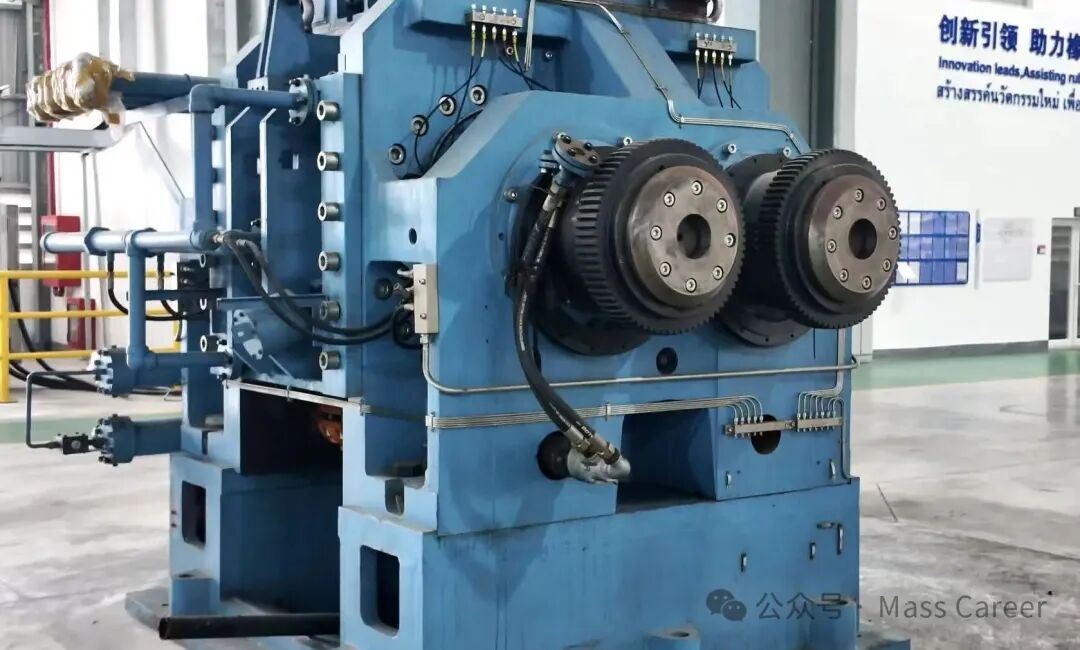

What Does a Complete Internal Mixer Overhaul Actually Involve?
For many tire manufacturers, internal mixer overhauls are a familiar part of equipment maintenance.
However, once the machine is disassembled, it often becomes clear that much more than a single damaged component needs attention.
Internal mixers operate under high temperatures and heavy mechanical loads. Over time, various components gradually experience wear. The long-term reliability of an internal mixer depends not on any single part, but on the combined performance of multiple critical components.
Therefore, a comprehensive overhaul is not simply about repairing whatever is damaged. It involves a thorough inspection and restoration of the machine's overall mechanical condition.
01 Rotors and Mixing Chamber

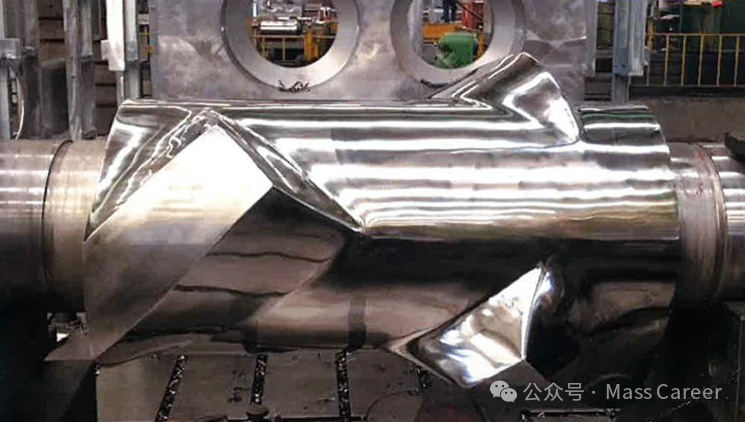

During an internal mixer overhaul, the rotors and mixing chamber are usually among the first components to be inspected, as they are also among the areas most susceptible to wear.
In addition to surface wear, the inspection focuses on the fit and clearances between the rotors, mixing chamber, end plates and other related components.
As the equipment operates over time, these clearances may gradually change. Continued operation under such conditions can accelerate wear and affect equipment performance.
Therefore, an overhaul involves more than simply applying weld repairs or restoring worn surfaces. Based on actual inspection and measurement results, technicians determine which areas require repair, which dimensions need to be restored, and how the subsequent repair work should be carried out.
02 Ram and Related Components

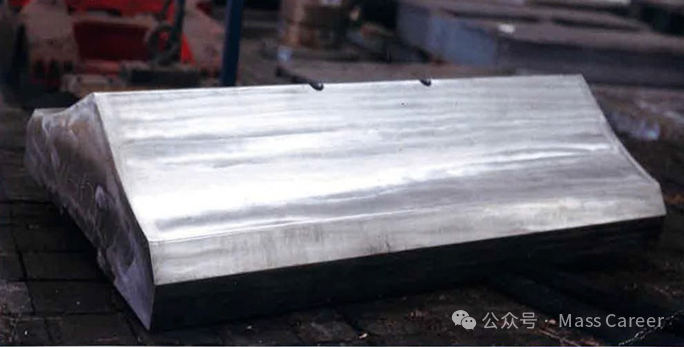

In addition to the rotors and mixing chamber, the ram is another critical component that requires careful inspection during an overhaul.
The ram must not only move properly but also apply stable pressure to the rubber compound during mixing.
Wear, restricted movement or other abnormalities affecting the ram, guide mechanisms or connecting components may influence equipment operation.
Therefore, overhaul inspections cover not only the ram itself but also its guide mechanisms, connections and other moving components. Ram pressure is also checked to ensure proper operation.
In many cases, the equipment may still appear to function normally. However, abnormalities in these components can gradually affect the stability and consistency of the mixing process.
03 Sealing Systems
The sealing system is another important area that can sometimes be overlooked during an internal mixer overhaul.

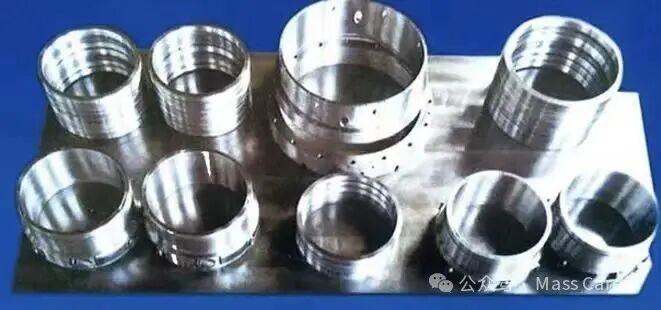

Sealing components, including rotating and stationary seal rings, are continuously exposed to friction during operation. As wear progresses, rubber compound or powder leakage may occur.
In addition to inspecting the sealing components themselves, technicians also check the condition of process oil, lubricating oil and the overall sealing system to identify potential problems that could affect subsequent operation.
Meanwhile, the cooling systems associated with the mixing chamber, rotors and discharge door are also inspected.
Although reduced cooling efficiency may not cause an immediate shutdown, prolonged operation under inadequate cooling conditions can accelerate wear on critical components and shorten equipment service life.
Some may assume that an overhaul is complete once the damaged components have been repaired or replaced.
In reality, component repair is only part of the process. Reassembly, adjustment and inspection are also necessary to verify the fit and clearances between critical components before the overhaul can be considered complete.
