Automatic vertical bead apexing linesfor Bead Ring Winding Machine

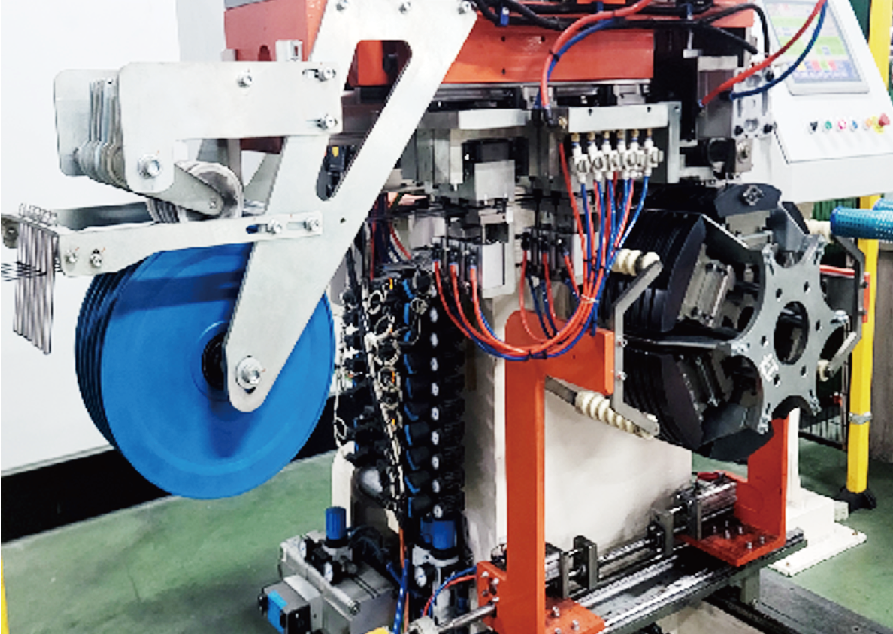

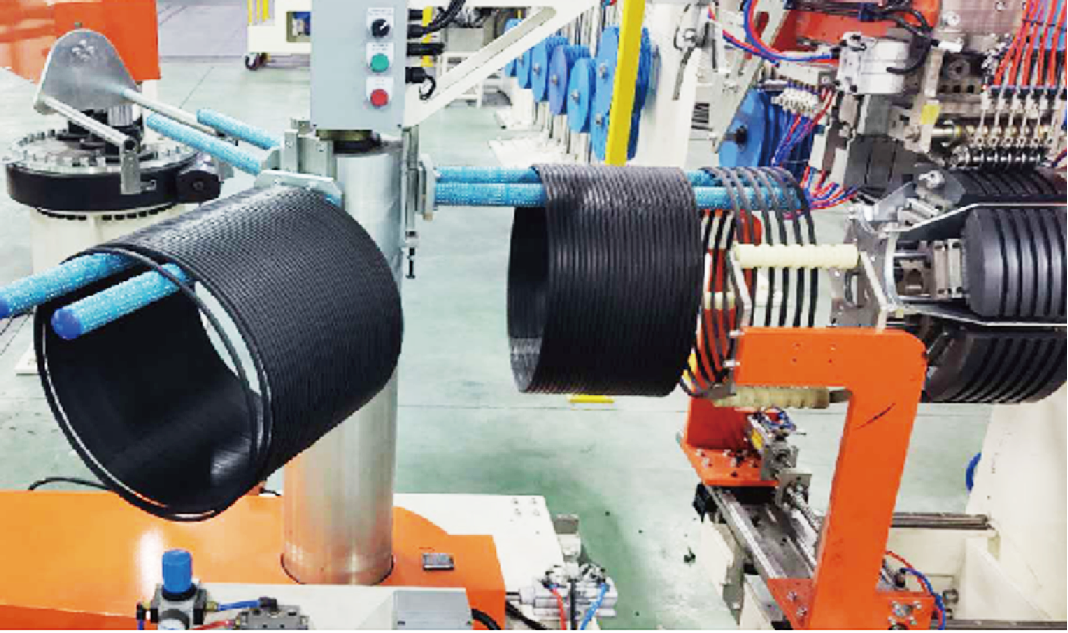

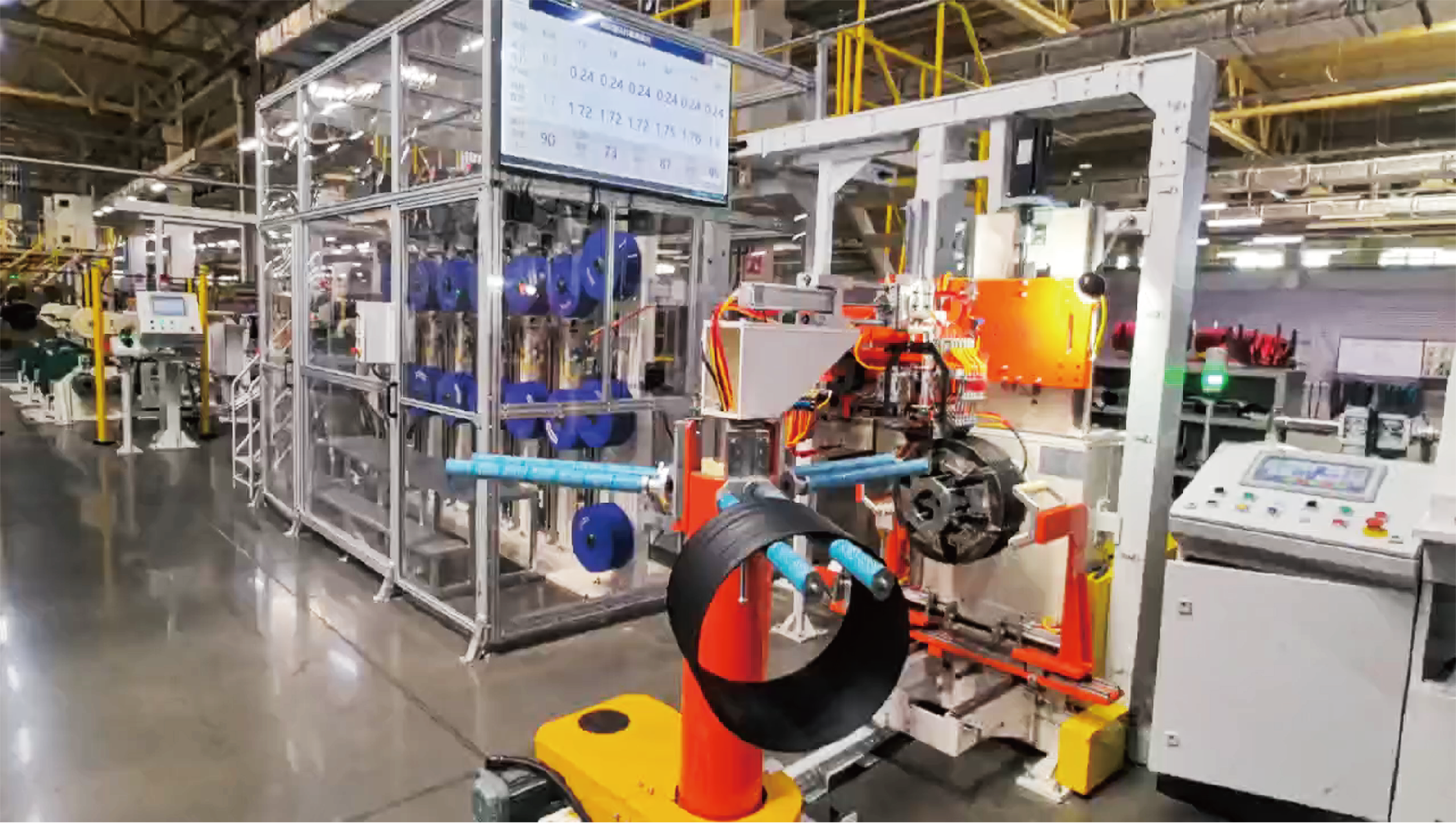

Bead Ring winding Machine Production Line is used to wind bead ring of PCR tire, it adopts single-wire winding craft, wraps to formbead rings of PCR tire at one time. Each section and number of turns can be set on touch screen through programmable controller,all the line is controlled automatically by computer.
Request a Quote Now
Core Strengths
01
More Intelligent
one-key start control, rapid size change；
02
Full-automatic

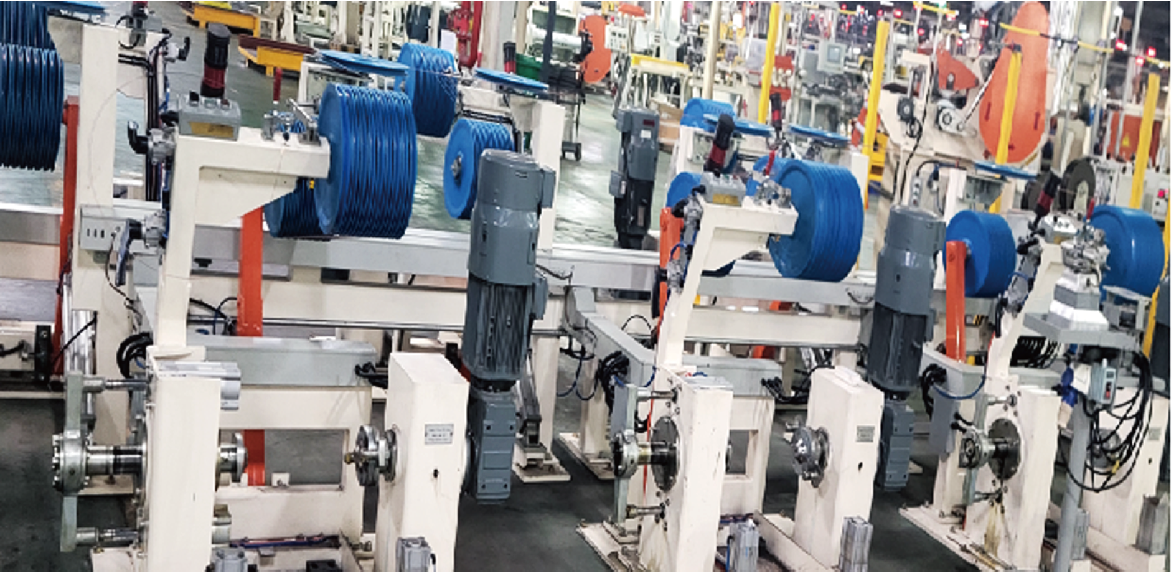

Automatic palletizing, automatic replacement of wirereels, automatic glue supply；
03
More stability
Automatic steel wire detection and wiring arrangement；
04
Higher efficiency

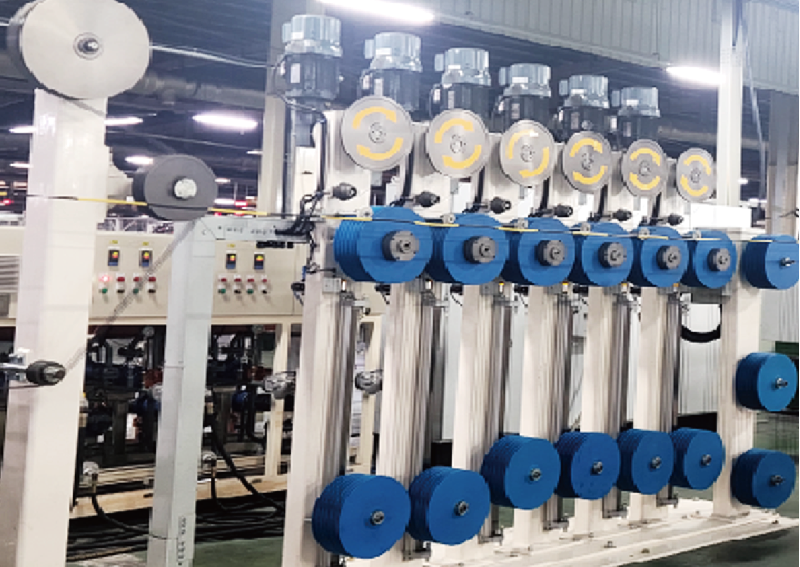

Automatic wire tension control and adhesiveapplication.
Technical Specifications
| Item | Parameter | Remark |
Bead Shape of Section |
Square & Hexgonal | |
Bead Size |
13"~24" | |
| Bead Layers | 3~14Wires | |
| Wire Diameter | 1.2mm~1.6mm | |
| Wire joint method | Lap | |
| Bead Height | Max.1oWires | |
| Capacity | 18Beads/m | 17" |
| complete machine(L*w*H) | 28mx9mx5m |
