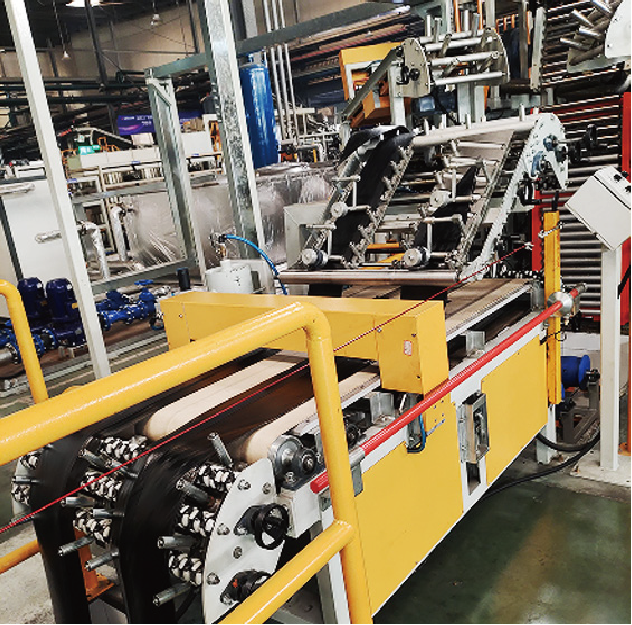

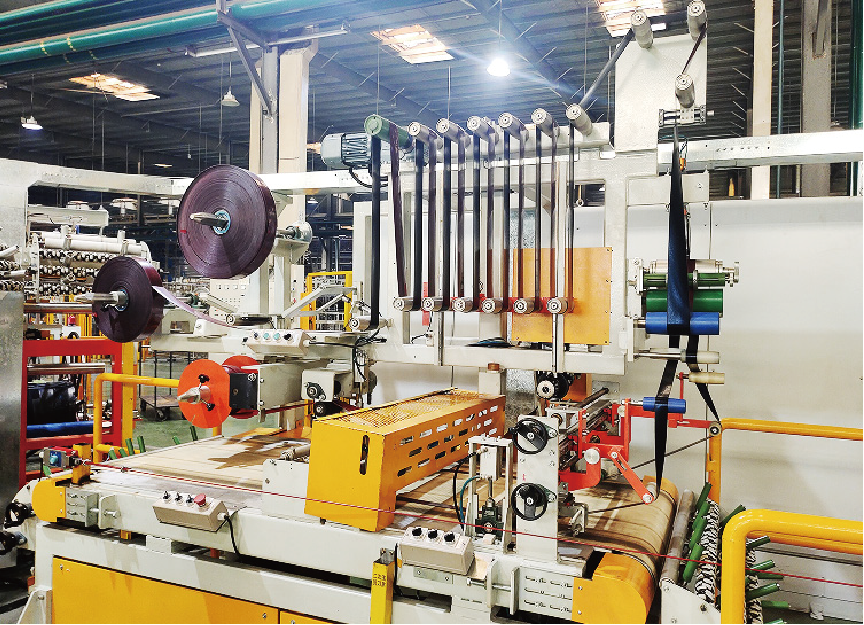

TBR bead insert cloth pre-assemling machine
This equipment is designed to assist the all-steel secondary forming machine.using steel wire anti-friction cloth with nylon edge wrapping, compounding with the extruded rubber, and then pasting the end sandwich rubber.It improves the durability of the tire bead and the service life under high load conditions. It solves the problems of cracking or voiding at the end of the cord turn-up layer in the bead area, as well as the bead area blowout caused by the above-mentioned issues.
Request a Quote Now
Core Strengths
01
High precision
High precision in visual width measurement and high repeat positioning accuracy；
02
More intelligent
Intelligent guidance for troubleshooting through fault alarms；
03
More reasonable
Compact structure with rational layout, enabling one-time forming according toprocess requirements.
Technical Specifications
| Item | Parameter | Unit |
Remark |
angle of core |
20-50 | ° |
|
width of chafer |
Max 250 | mm | |
| laminating rubber width | Max 50 | mm | |
| laminating rubber height | Max 1.5 | mm | |
| fabric width | Max 60 | mm | |
| fabric height | Max 1.5 | mm | |
| type rubber height | Max 12 | mm | |
| type rubber width | Max 150 | mm |
