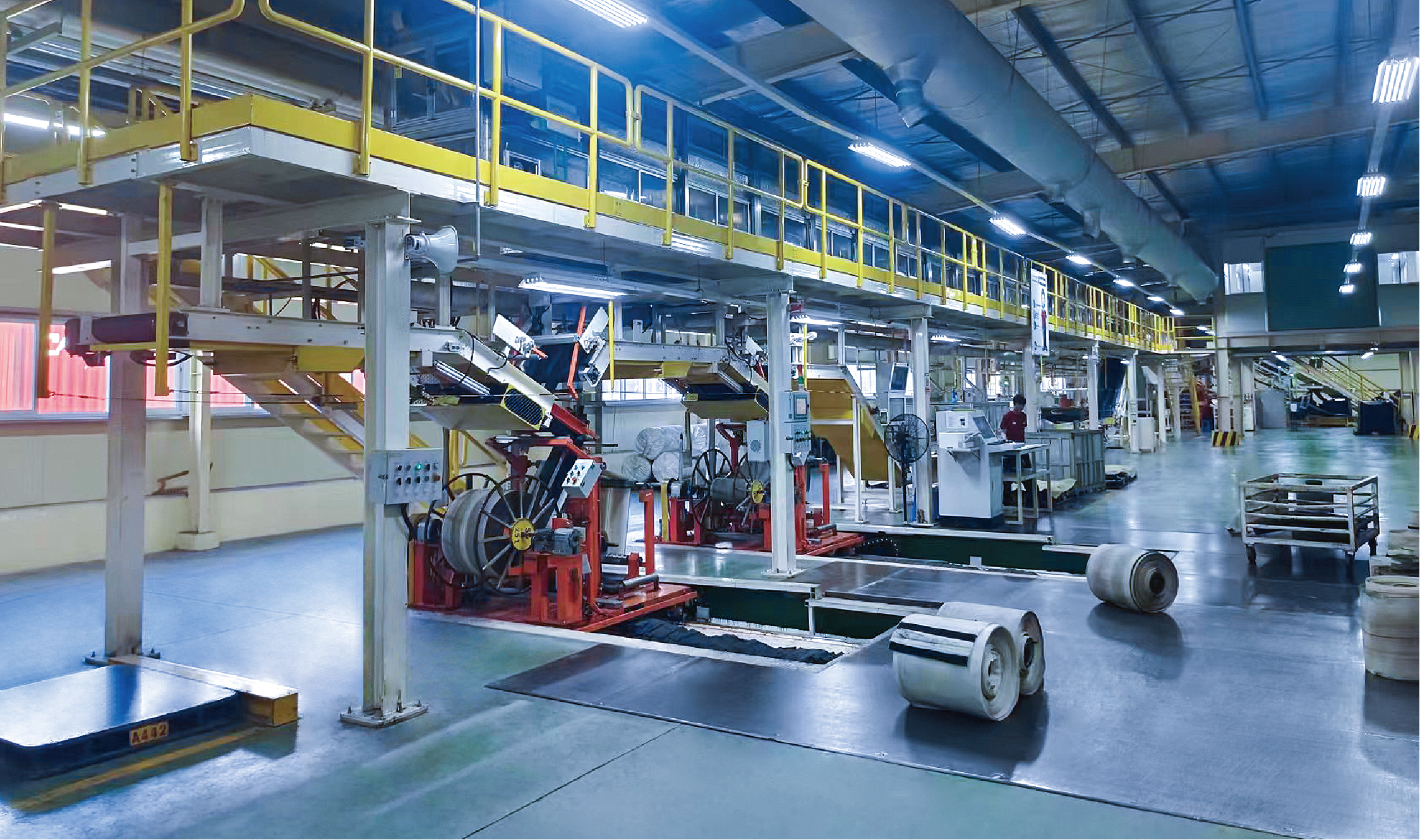

Sidewall extruder downstream line
Sidewallinteligent extruder downstream line is used to produce sidewall for PCR/LTR/TBR which is an important part of a sidewallextruder production line. can realize the digital management and intelligent controlof the production process,reduce managementcosts.
Request a Quote Now
Core Strengths
01
Fully Automatic
The equipment has the functions of automatic length cutting, automaticdrawing head of coiling station, automatic switching of coiling station car, etc.,realizing automatic unmanned operation；
02
Real-time Inspection
In the production process, the products are checked in real time, and theunqualified rubber material is automatically punched mark, automaticelimination；
03
Intelligentizatio
The logistics system interconnects with the cache library of tooling car to realizeautomatic access to the cache library；
04
Full Compatibility
Suitable for the main extruder manufacturers extruder.
Technical Specifications
| Item | Semisteel | All-steel |
Unit |
Sidewall width |
Max.300 | Max.300 |
mm |
Sidewall thickness |
Max.15 | Max.30 | mm |
| Velocity | 4~45 | 3~35 | m/min |
| Transmission line width | 600/800/1000 | 600/800/1000 | mm |
| Forced shrinkage ratio | 6%~13% | 6%~24% | |
| Meter scale maximum weighing | 10 | 20 | kg |
| Static weighing error | ±0.1% | ±0.1% | |
| Cooling length | 70 | 50 | m |
| Sidewall length accuracy | ±2 | ±3 | mm |
| Sidewall cutting Angle | 20°~40° | 20°~40° | |
| Total power | 75 | 150 | KW |
| Overall dimensions (Length x width x height） | 55000x7600x5200 (including logistics line) | 70000x8500x5200 | mm |
| Weight | 75 | 110 | t |
