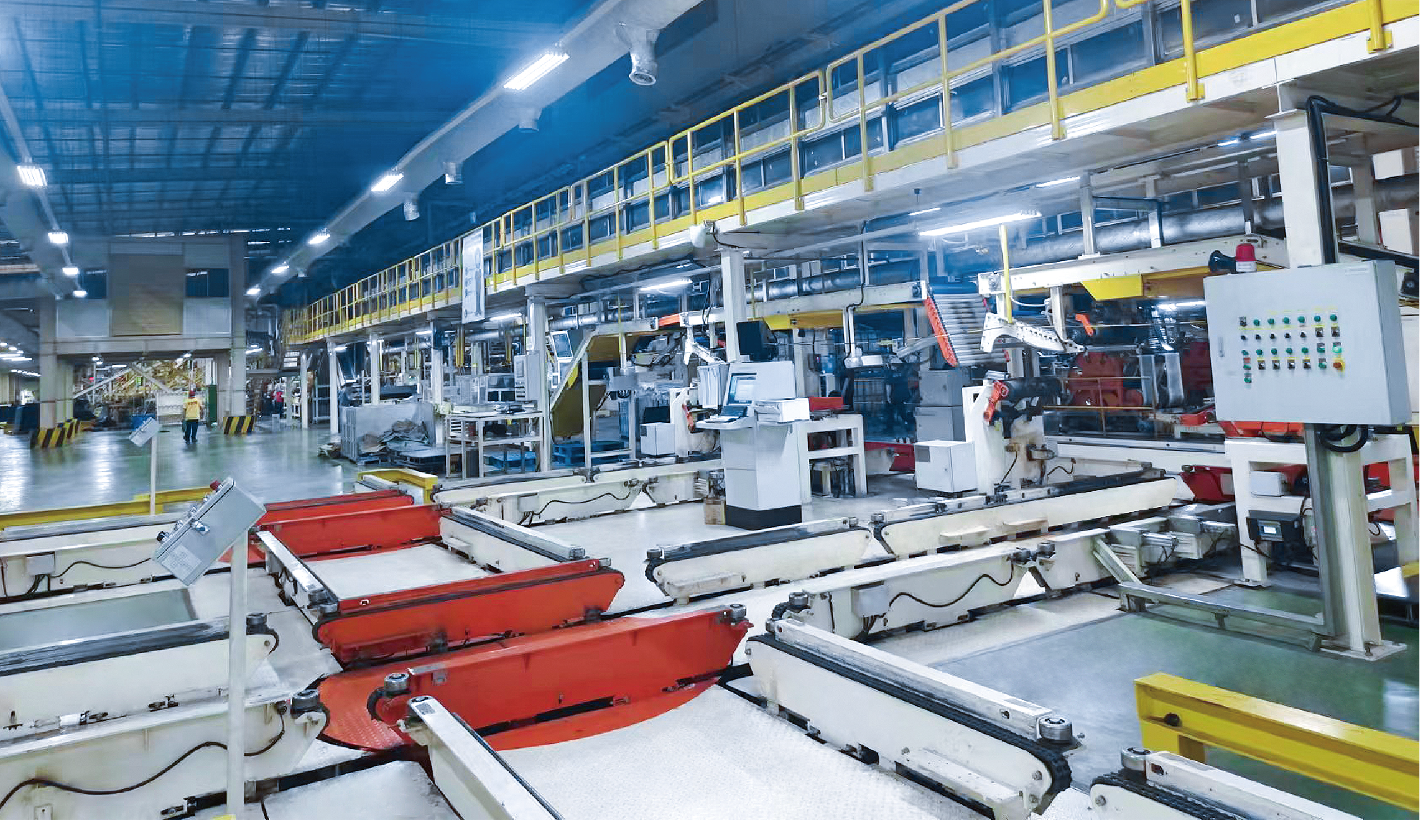

Tread extruder dowrnstream line
Tread intelligent extruder downstream line is used to prodduce tread for PCR/LTR/TBR, which is an important part of a tread extruderproduction line.can realize the digital management and intelligent control of the production process, reduce management costs.
Request a Quote Now
Core Strengths
Technical Specifications
| Item | Semisteel | All-steel |
Unit |
Tread width |
Max.450 | Max.450 |
mm |
Tread thickness |
Max.25 | Max.25 | mm |
| Tread length | Max.4000 | mm | |
| Velocity | 4~40 | 3~30 | m/min |
| Transmission line width | 600/800/1000 | 600/800/1000 | mm |
| Forced shrinkage ratio | 6%~13% | 6%~24% | |
| Meter scale maximum weighing | 10 | 20 | kg |
| Static weighing error | ±0.1% | ±0.1% | |
| Cooling length | 100 | 120 | m |
| Tread length accuracy | ±2 | ±3 | mm |
| Maximum number of cuts | 20 | times/min | |
| Tread cutting Angle | 20°~40° | 20°~40° | |
| Total power | 120(including logistics line) | 210 | KW |
Overall dimensions(Length x width x height) |
72000x14500x5200 (including logistics line) | 70000x8500x5200 | mm |
| Weight | 100 | 120 | t |
